By placing the router directly inside of the antenna, you will avoid the long coaxial cable runs. This adds both financial and performance benefits to your 4/5G deployment. Financially, you’ll save on the cost of the coaxial cables and, more importantly, the cost of running such cables. Performance-wise, you’ll ensure that you’ll have virtually no cable loss, which will contribute to higher throughputs on your connection.
In rural areas (where buildings are further spaced apart), cellular networks are mainly deployed using lower frequency bands. Contrastingly, in suburban/urban areas, the higher frequencies are the ones typically used. Your selected antenna should be one that matches this!
In rural areas (where buildings are further spaced apart), cellular networks are mainly deployed using lower frequency bands. Contrastingly, in suburban/urban areas, the higher frequencies are the ones typically used. Your selected antenna should be one that matches this!
Depending on where you are, how tall can you install the antenna in your house/building, and if there is a unobstructed Line Of Sight (LOS) from that point to your provider’s Base Station/Tower/Antenna, you might benefit from a directional antenna. If so, if you have LOS, a directional antenna might be the best choice for you. If not, then most probably, an Omni-directional antenna (or antennas) might be better.
Be sure that the Provider’s Base Station you’re considering, is the one from your provider, meaning, from the same company from which you got the SIM card for your router.
Placing your antenna outdoors, greatly benefits your cellular reception. You should always try to bring outside. However, this isn’t always possible, so we have special mounting options to help you when you need to keep the antenna inside.
Depending on where you are, how tall can you install the antenna in your house/building, and if there is a unobstructed Line Of Sight (LOS) from that point to your provider’s Base Station/Tower/Antenna, you might benefit from a directional antenna. If so, if you have LOS, a directional antenna might be the best choice for you. If not, then most probably, an Omni-directional antenna (or antennas) might be better.
Be sure that the Provider’s Base Station you’re considering, is the one from your provider, meaning, from the same company from which you got the SIM card for your router.
There are multiple ways of creating a good MIMO antenna setup. As an example: a MIMO 4×4 cellular router, may be connected to four SISO antennas, to two MIMO 2×2 antennas or, finally, to a single MIMO 4×4 antenna. This antenna selection tool will present you with 4×4, 2×2 and 1×1 antenna options. For certain installation setups, it might be beneficial to go for a mix of antenna types. For an expert’s advise, please reach out to your distributor.
There are multiple ways of creating a good MIMO antenna setup. As an example: a MIMO 4×4 cellular router, may be connected to four SISO antennas, to two MIMO 2×2 antennas or, finally, to a single MIMO 4×4 antenna. This antenna selection tool will present you with 4×4, 2×2 and 1×1 antenna options. For certain installation setups, it might be beneficial to go for a mix of antenna types. For an expert’s advise, please reach out to your distributor.
Placing your antenna outdoors, greatly benefits your cellular reception. You should always try to bring outside. However, this isn’t always possible, so we have special mounting options to help you when you need to keep the antenna inside.

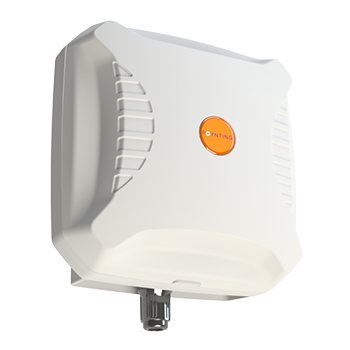

EPNT-2
Wide Band (617-4200MHz), 4X4 Cross Polarized MIMO LTE/5G, 2x High Performance (11dBi) Directional and 2x Omni-directional (5dBi) antennas.
Fitting routers up to 185 x 145 x 45 mm³. The EPNT-2 is a 4×4 cross polarized LTE/5G antenna. Given its size, only 2 of its LTE/5G connections are directional antennas (Cell 1 Main & Cell 1 Aux).
Note: Several routers don’t transmit and receive all bands in all 4 connectors, so this solution may prove itsell as well performing as a purely 4 element directional antenna.
I want to order
More Info
Poynting Antennas introduces its all-new antenna enclosure range, the ePoynt® series. The ePoynt® enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into Customer Premises Equipment (CPE) – just add your own 4G/5G router. The ePoynt® enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The EPNT-2 antenna enclosure uses our world-renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. Providing a cross-polarised, high gain, uni-directional antenna that offers wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, making it ideal for 4G & 5G implementations. The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4×4 MIMO or dual 2×2 MIMO routers. The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world-class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather conditions, making the antenna weatherproof and waterproof with an IP65 rating.
| SKU | A-EPNT-0002-V3-01 |
|---|---|
| EAN | 6009710927915 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.17kg 4.79lbs |
| Packaged Dimensions | 410 x 280 x 177 mm 16.14 x 11.02 x 6.97 inch |
| Master Box QTY | 6 |
| Master Box Weight | 13.02kg 28.70lbs |
| Master Box Dimensions | 1126 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN |
EPNT-2
Wide Band (617-4200MHz), 4X4 Cross Polarized MIMO LTE/5G, 2x High Performance (11dBi) Directional and 2x Omni-directional (5dBi) antennas.
Fitting routers up to 185 x 145 x 45 mm³. The EPNT-2 is a 4×4 cross polarized LTE/5G antenna. Given its size, only 2 of its LTE/5G connections are directional antennas (Cell 1 Main & Cell 1 Aux).
Note: Several routers don’t transmit and receive all bands in all 4 connectors, so this solution may prove itsell as well performing as a purely 4 element directional antenna.
I want to order
More Info
Poynting Antennas introduces its all-new antenna enclosure range, the ePoynt® series. The ePoynt® enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into Customer Premises Equipment (CPE) – just add your own 4G/5G router. The ePoynt® enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The EPNT-2 antenna enclosure uses our world-renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. Providing a cross-polarised, high gain, uni-directional antenna that offers wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, making it ideal for 4G & 5G implementations. The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4×4 MIMO or dual 2×2 MIMO routers. The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world-class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather conditions, making the antenna weatherproof and waterproof with an IP65 rating.
| SKU | A-EPNT-0002-V3-01 |
|---|---|
| EAN | 6009710927915 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.17kg 4.79lbs |
| Packaged Dimensions | 410 x 280 x 177 mm 16.14 x 11.02 x 6.97 inch |
| Master Box QTY | 6 |
| Master Box Weight | 13.02kg 28.70lbs |
| Master Box Dimensions | 1126 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN |
EPNT-2
Wide Band (617-4200MHz), 4X4 Cross Polarized MIMO LTE/5G, 2x High Performance (11dBi) Directional and 2x Omni-directional (5dBi) antennas.
Fitting routers up to 185 x 145 x 45 mm³. The EPNT-2 is a 4×4 cross polarized LTE/5G antenna. Given its size, only 2 of its LTE/5G connections are directional antennas (Cell 1 Main & Cell 1 Aux).
Note: Several routers don’t transmit and receive all bands in all 4 connectors, so this solution may prove itsell as well performing as a purely 4 element directional antenna.
I want to order
More Info
Poynting Antennas introduces its all-new antenna enclosure range, the ePoynt® series. The ePoynt® enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into Customer Premises Equipment (CPE) – just add your own 4G/5G router. The ePoynt® enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The EPNT-2 antenna enclosure uses our world-renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. Providing a cross-polarised, high gain, uni-directional antenna that offers wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, making it ideal for 4G & 5G implementations. The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4×4 MIMO or dual 2×2 MIMO routers. The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world-class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather conditions, making the antenna weatherproof and waterproof with an IP65 rating.
| SKU | A-EPNT-0002-V3-01 |
|---|---|
| EAN | 6009710927915 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.17kg 4.79lbs |
| Packaged Dimensions | 410 x 280 x 177 mm 16.14 x 11.02 x 6.97 inch |
| Master Box QTY | 6 |
| Master Box Weight | 13.02kg 28.70lbs |
| Master Box Dimensions | 1126 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN |

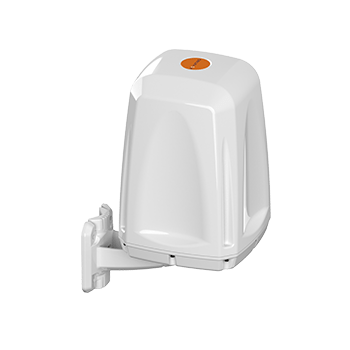

EPNT-4-17/EPNT-4-19
Wide Band (617-4200MHz), 4X4 Cross Polarized MIMO LTE/5G Omnidirectional Antenna
Fitting routers up to 140 x 120 x 50 mm³. A different form factor, that places the router below the antennas, ensuring perfect omni-directionality. An higher water-tight rating when compared to the EPNT-1. However, a tighter router enclosure space.
EPNT-4 and EPNT-1 have similar gain performance across the covered bands.
I want to order
More Info
The EPNT-4 is Poynting’s newly added omni-directional, customer-premises equipment (CPE). The EPNT-4 offers a variety of antennas in one package, such as 4×4 5G/LTE MIMO, 2×2 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/LTE antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/LTE bands with excellent gain across all frequencies, enhancing the 5G performance features, such as multi carrier aggregation (CA) for communication. While the Wi-Fi antennas offer dual band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of our cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput. The EPNT-4 is also fully saltwater protected, so that it can be used in highly corrosive environments, including chemical and toxic environments, thanks to the UV stable ASA radome material. The enclosure also offers a robust mechanical design to withstand adverse weather conditions, making the EPNT-4 vandal and weatherproof with an IP67 & IK10 rating.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-EPNT-0004-V1-15 | RTK-031 | 0.15m | White | |
| A-EPNT-0004-V1-17 | RTK-031 | 0.15m | White |
| SKU | A-EPNT-0004-V1-15 | A-EPNT-0004-V1-17 |
|---|---|---|
| EAN | 6009710924853 | 6009710924877 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.19kg 4.83lbs |
2.21kg 4.87lbs |
| Packaged Dimensions | 405 x 28 x 20 mm 15.95 x 11.02 x 7.87 inch |
405 x 280 x 200 mm 15.95 x 11.02 x 7.87 inch |
| Master Box QTY | 5 | 5 |
| Master Box Weight | 10.95kg 24.14lbs |
10.95kg 24.14lbs |
| Master Box Dimensions | 1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN | CN |
EPNT-2
Wide Band (617-4200MHz), 4X4 Cross Polarized MIMO LTE/5G, 2x High Performance (11dBi) Directional and 2x Omni-directional (5dBi) antennas.
Fitting routers up to 185 x 145 x 45 mm³. The EPNT-2 is a 4×4 cross polarized LTE/5G antenna. Given its size, only 2 of its LTE/5G connections are directional antennas (Cell 1 Main & Cell 1 Aux).
Note: Several routers don’t transmit and receive all bands in all 4 connectors, so this solution may prove itsell as well performing as a purely 4 element directional antenna.
I want to order
More Info
Poynting Antennas introduces its all-new antenna enclosure range, the ePoynt® series. The ePoynt® enclosures are designed to fit a variety of router modules, transforming the antenna enclosure into Customer Premises Equipment (CPE) – just add your own 4G/5G router. The ePoynt® enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. The EPNT-2 antenna enclosure uses our world-renowned Artificial Magnetic Conductor (AMC) technology from our XPOL-2-5G antenna. Providing a cross-polarised, high gain, uni-directional antenna that offers wideband coverage from 617 to 960 MHz and 1710 to 4200 MHz, making it ideal for 4G & 5G implementations. The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4×4 MIMO or dual 2×2 MIMO routers. The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world-class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather conditions, making the antenna weatherproof and waterproof with an IP65 rating.
| SKU | A-EPNT-0002-V3-01 |
|---|---|
| EAN | 6009710927915 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.17kg 4.79lbs |
| Packaged Dimensions | 410 x 280 x 177 mm 16.14 x 11.02 x 6.97 inch |
| Master Box QTY | 6 |
| Master Box Weight | 13.02kg 28.70lbs |
| Master Box Dimensions | 1126 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN |
EPNT-4-15
Wide Band (617-4200MHz), 2X2 Cross Polarized MIMO LTE/5G Omnidirectional Antenna.
Fitting routers up to 140 x 120 x 50 mm³. A different form factor, that places the router below the antennas, ensuring perfect omni-directionality. An higher water-tight rating when compared to the EPNT-1. However, a tighter router enclosure space.
EPNT-4 and EPNT-1 have similar gain performance across the covered bands.
I want to order
More Info
The EPNT-4 is Poynting’s newly added omni-directional, customer-premises equipment (CPE). The EPNT-4 offers a variety of antennas in one package, such as 4×4 5G/LTE MIMO, 2×2 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/LTE antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/LTE bands with excellent gain across all frequencies, enhancing the 5G performance features, such as multi carrier aggregation (CA) for communication. While the Wi-Fi antennas offer dual band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of our cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput. The EPNT-4 is also fully saltwater protected, so that it can be used in highly corrosive environments, including chemical and toxic environments, thanks to the UV stable ASA radome material. The enclosure also offers a robust mechanical design to withstand adverse weather conditions, making the EPNT-4 vandal and weatherproof with an IP67 & IK10 rating.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-EPNT-0004-V1-15 | RTK-031 | 0.15m | White | |
| A-EPNT-0004-V1-17 | RTK-031 | 0.15m | White |
| SKU | A-EPNT-0004-V1-15 | A-EPNT-0004-V1-17 |
|---|---|---|
| EAN | 6009710924853 | 6009710924877 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.19kg 4.83lbs |
2.21kg 4.87lbs |
| Packaged Dimensions | 405 x 28 x 20 mm 15.95 x 11.02 x 7.87 inch |
405 x 280 x 200 mm 15.95 x 11.02 x 7.87 inch |
| Master Box QTY | 5 | 5 |
| Master Box Weight | 10.95kg 24.14lbs |
10.95kg 24.14lbs |
| Master Box Dimensions | 1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN | CN |
There are multiple ways of creating a good MIMO antenna setup. As an example: a MIMO 4×4 cellular router, may be connected to four SISO antennas, to two MIMO 2×2 antennas or, finally, to a single MIMO 4×4 antenna. This antenna selection tool will present you with 4×4, 2×2 and 1×1 antenna options. For certain installation setups, it might be beneficial to go for a mix of antenna types. For an expert’s advise, please reach out to your distributor.
There are multiple ways of creating a good MIMO antenna setup. As an example: a MIMO 4×4 cellular router, may be connected to four SISO antennas, to two MIMO 2×2 antennas or, finally, to a single MIMO 4×4 antenna. This antenna selection tool will present you with 4×4, 2×2 and 1×1 antenna options. For certain installation setups, it might be beneficial to go for a mix of antenna types. For an expert’s advise, please reach out to your distributor.
There are multiple ways of creating a good MIMO antenna setup. As an example: a MIMO 4×4 cellular router, may be connected to four SISO antennas, to two MIMO 2×2 antennas or, finally, to a single MIMO 4×4 antenna. This antenna selection tool will present you with 4×4, 2×2 and 1×1 antenna options. For certain installation setups, it might be beneficial to go for a mix of antenna types. For an expert’s advise, please reach out to your distributor.
There are multiple ways of creating a good MIMO antenna setup. As an example: a MIMO 4×4 cellular router, may be connected to four SISO antennas, to two MIMO 2×2 antennas or, finally, to a single MIMO 4×4 antenna. This antenna selection tool will present you with 4×4, 2×2 and 1×1 antenna options. For certain installation setups, it might be beneficial to go for a mix of antenna types. For an expert’s advise, please reach out to your distributor.
XPOL-24
A 4×4 MIMO, cross-polarized, Ultra-Wide Band (617 – 4200 MHz), Directional High Gain (11dBi) Antenna. Multiple cable and connector options.
The XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. T
I want to order
More Info
The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is our first ever 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna. The XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments.
| SKU | A-XPOL-0024-V1-01 | A-XPOL-0024-V1-02 |
|---|---|---|
| EAN | 6009710024693 | 6009710925003 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 4.38kg 9.66lbs |
4.38kg 9.66lbs |
| Packaged Dimensions | 508 x 419 x120 mm 20 x 16.50 x 4.72 inch |
508 x 419 x120 mm 20 x 16.50 x 4.72 inch |
| Master Box QTY | 3 | 3 |
| Master Box Weight | 14.45kg 31.86lbs |
|
| Master Box Dimensions | 530 x 450 x 430 mm 20.87 x 17.72 x 16.93 inch |
530 x 450 x 430 mm 20.87 x 17.72 x 16.93 inch |
| Country of Origin | CN | CN |
LPDA-500
Widest Band (617 – 7200 MHz), Directional High Gain (11.5dBi) Antenna, N-Type(f) connector, with the most flexible bracket.
The LPDA-500 has consistent high-gain performance across the entire band of operation, making the antenna suitable for the deployment of various wireless communication systems. Our previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures, with the new LPDA-500 being no different.
I want to order
More Info
The LPDA-500 is Poynting’s new and improved log-periodic dipole array (LPDA) antenna. The LPDA-500 is a high-gain, ultra-wideband, uni-directional antenna that operate from 617 to 7200 MHz. The ultra-wideband coverage includes current 5G and future cellular bands as well as Wi-Fi and Wi-Fi 6E bands. The LPDA-500 has consistent high-gain performance across the entire band of operation, making the antenna suitable for the deployment of various wireless communication systems. Our previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures, with the new LPDA-500 being no different. The LPDA-500 comes standard with a new and improved mounting bracket, which can be rotated at 45° intervals. This will allow for ease of installation and the customer will be able to mount multiple LPDA-500 antennas and orientate them in a MIMO configuration, i.e., vertical, and horizontal or ±45°. Poynting Antennas are well known for designing future proof antennas and the new LPDA-500 is no different.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-LPDA-0500-V1-01 | N/A | N/A | Silver |
| SKU | A-LPDA-0500-V1-01 |
|---|---|
| EAN | 6009710925447 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 3.34kg 7.36lbs |
| Packaged Dimensions | 1385 x 250 x 145 mm 54.53 x 9.84 x 5.71 inch |
| Master Box QTY | 4 |
| Master Box Weight | 15.36kg 33.86lbs |
| Master Box Dimensions | 1440 x 565 x 340 mm 56.69 x 22.24 x 13.39 inch |
| Country of Origin | CN |
LPDA-500
Widest Band (617 – 7200 MHz), Directional High Gain (11.5dBi) Antenna, N-Type(f) connector, with the most flexible bracket.
The LPDA-500 has consistent high-gain performance across the entire band of operation, making the antenna suitable for the deployment of various wireless communication systems. Our previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures, with the new LPDA-500 being no different.
I want to order
More Info
The LPDA-500 is Poynting’s new and improved log-periodic dipole array (LPDA) antenna. The LPDA-500 is a high-gain, ultra-wideband, uni-directional antenna that operate from 617 to 7200 MHz. The ultra-wideband coverage includes current 5G and future cellular bands as well as Wi-Fi and Wi-Fi 6E bands. The LPDA-500 has consistent high-gain performance across the entire band of operation, making the antenna suitable for the deployment of various wireless communication systems. Our previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures, with the new LPDA-500 being no different. The LPDA-500 comes standard with a new and improved mounting bracket, which can be rotated at 45° intervals. This will allow for ease of installation and the customer will be able to mount multiple LPDA-500 antennas and orientate them in a MIMO configuration, i.e., vertical, and horizontal or ±45°. Poynting Antennas are well known for designing future proof antennas and the new LPDA-500 is no different.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-LPDA-0500-V1-01 | N/A | N/A | Silver |
| SKU | A-LPDA-0500-V1-01 |
|---|---|
| EAN | 6009710925447 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 3.34kg 7.36lbs |
| Packaged Dimensions | 1385 x 250 x 145 mm 54.53 x 9.84 x 5.71 inch |
| Master Box QTY | 4 |
| Master Box Weight | 15.36kg 33.86lbs |
| Master Box Dimensions | 1440 x 565 x 340 mm 56.69 x 22.24 x 13.39 inch |
| Country of Origin | CN |
XPOL-2-5G
A 2×2 MIMO, cross-polarized, Ultra-Wide Band (617 – 4200 MHz), Directional High Gain (11dBi) Antenna. Multiple cable and connector options.
The XPOL-2-5G antenna includes the newer 3400 – 4200 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz in addition to the new bands, the gain in the 1700 MHz and 2.7 GHz is around 3 dB higher than the “V2” over the same frequency bands!
I want to order
More Info
The XPOL-2-5G is Poynting’s third generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna. The XPOL-2-5G antenna includes the newer 3400 – 4200 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz in addition to the new bands, the gain in the 1700 MHz and 2.7 GHz is around 3 dB higher than the “V2” over the same frequency bands! Our “V2” antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design. So, if it was a car, we installed an entirely new technology engine producing twice the power under the bonnet – it may look the same, but just wait until you turn the ignition on!
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0002-V3-01 | Twin HDF-195 | 5m | White | |
| A-XPOL-0002-V3-02 | N/A | N/A | White | |
| A-XPOL-0002-V3-03 | Twin HDF-195 | 10m | White |
| SKU | A-XPOL-0002-V3-01 | A-XPOL-0002-V3-02 | A-XPOL-0002-V3-03 |
|---|---|---|---|
| EAN | 6009880915750 | 6009710920107 | 6009710920121 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.98kg 4.37lbs |
1.86kg 4.1lbs |
2.3kg 5.07lbs |
| Packaged Dimensions | 375x267x100mm 14.76×10.51×3.94inch |
375x267x120mm 14.76×10.51 x4.72 inch |
375x267x100mm 14.76×10.51×3.94inch |
| Master Box QTY | 10 | 8 | 10 |
| Master Box Weight | 22.7kg 50.04lbs |
19kg 41.89lbs |
24.07kg 53.07lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.67 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.67 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.67 inch |
| Country of Origin | CN | CN | CN |
LPDA-92
Ultra-Wide Band (690 – 3800 MHz), Directional High Gain (12dBi) Antenna, 7m HDF-195 cable, w/ SMA (m) connector.
This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures.
I want to order
More Info
This high-gain, wideband, directional antenna covers all international cellular, mobile and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-LPDA-0092 | HDF-195 | 7m | Silver | |
| A-LPDA-0092-04 | HDF-195 | 0.3m | Silver | |
| A-LPDA-0092-04-LTE | HDF-195 | 0.5m | Silver | |
| A-LPDA-0092 | HDF-195 | 0.3m | Silver | |
| A-LPDA-0092-30-LTE | HDF-195 | 7m | Silver |
| SKU | A-LPDA-0092 | A-LPDA-0092-04 |
|---|---|---|
| EAN | 6009710921166 | 6009710921722 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.02kg 4.45lbs |
1.93kg 4.25lbs |
| Packaged Dimensions | 1120 x 210 x 60 mm 44.09 x 8.27 x 2.36. inch |
1120 x 210 x 60 mm 44.09 x 8.27. x 2.36.inch |
| Master Box QTY | 10 | 10 |
| Master Box Weight | 20.02kg 44.14lbs |
19.37kg 42.7lbs |
| Master Box Dimensions | 1140 x 435 x 330 mm 44.88 x 17.13 x 13 inch |
1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | RSA | CN |
LPDA-500
Widest Band (617 – 7200 MHz), Directional High Gain (11.5dBi) Antenna, N-Type(f) connector, with the most flexible bracket.
The LPDA-500 has consistent high-gain performance across the entire band of operation, making the antenna suitable for the deployment of various wireless communication systems. Our previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures, with the new LPDA-500 being no different.
I want to order
More Info
The LPDA-500 is Poynting’s new and improved log-periodic dipole array (LPDA) antenna. The LPDA-500 is a high-gain, ultra-wideband, uni-directional antenna that operate from 617 to 7200 MHz. The ultra-wideband coverage includes current 5G and future cellular bands as well as Wi-Fi and Wi-Fi 6E bands. The LPDA-500 has consistent high-gain performance across the entire band of operation, making the antenna suitable for the deployment of various wireless communication systems. Our previous LPDA has been successfully used in extreme weather environments across the world with close to zero failures, with the new LPDA-500 being no different. The LPDA-500 comes standard with a new and improved mounting bracket, which can be rotated at 45° intervals. This will allow for ease of installation and the customer will be able to mount multiple LPDA-500 antennas and orientate them in a MIMO configuration, i.e., vertical, and horizontal or ±45°. Poynting Antennas are well known for designing future proof antennas and the new LPDA-500 is no different.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-LPDA-0500-V1-01 | N/A | N/A | Silver |
| SKU | A-LPDA-0500-V1-01 |
|---|---|
| EAN | 6009710925447 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 3.34kg 7.36lbs |
| Packaged Dimensions | 1385 x 250 x 145 mm 54.53 x 9.84 x 5.71 inch |
| Master Box QTY | 4 |
| Master Box Weight | 15.36kg 33.86lbs |
| Master Box Dimensions | 1440 x 565 x 340 mm 56.69 x 22.24 x 13.39 inch |
| Country of Origin | CN |
XPOL-1-v2-41
A 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
OMNI-214
A 4×4 MIMO Ultra-Wide Band (617-3800 MHz) Omni-directional (3.5dBi) Antenna, w/ 2m twin HDF-195 cables, with SMA (m) connectors.
The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
I want to order
More Info
The OMNI-214 is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 3800 MHz. The antenna offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-214 a true omni-directional 4×4 MIMO antenna, suitable for urban or commercial applications. The OMNI-214 guarantees signal reception almost everywhere and is usable in all part of the world. The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0214-V1-01 | HDF-195 | 2m | White |
| SKU | A-OMNI-0214-V1-01 |
|---|---|
| EAN | 6009710923665 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.59kg 3.51lbs |
| Packaged Dimensions | 690 x 95 x 96 mm 27.17 x 3.74 x 3.78 inch |
| Master Box QTY | 24 |
| Master Box Weight | 39.47kg 87.02lbs |
| Master Box Dimensions | 400 x 600 x 810 mm 15.75 x 23.62 x 31.89 inch |
| Country of Origin | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G. High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger).
The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
OMNI-293
Ultra-Wide Band (617 – 3800 MHz), Omni-Directional (9dBi) Antenna, N-Type connector.
The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
I want to order
More Info
The OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0293-V1-01 | N/A | N/A | Off White |
| SKU | A-OMNI-0293-V1-01 |
|---|---|
| EAN | 6009710922347 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.14kg 2.51lbs |
| Packaged Dimensions | 690 x 95 x 95 mm 27.17 x 3.74 x 3.74 inch |
| Master Box QTY | 24 |
| Master Box Weight | 29.04kg 64.02lbs |
| Master Box Dimensions | 810 x 600 x 400 mm 31.89 x 23.62 x 15.75 inch |
| Country of Origin | CN |
OMNI-600
A 2×2 MIMO Ultra-Wide Band (410-3800 MHz) Omni-directional (6.2dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors.
The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network.
I want to order
More Info
The OMNI-600 is a unique new design with improved 2×2 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range, making the OMNI-600 a true high performance omni-directional antenna. The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries.
- 2X2 MIMO high performance omni-directional antenna
- Consistent gain over a wide frequency band
- Increased connectivity stability
- Excellent broadband quality antenna
- Vandal and water-resistant enclosure
OMNI-293
Ultra-Wide Band (617 – 3800 MHz), Omni-Directional (9dBi) Antenna, N-Type connector.
The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
I want to order
More Info
The OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0293-V1-01 | N/A | N/A | Off White |
| SKU | A-OMNI-0293-V1-01 |
|---|---|
| EAN | 6009710922347 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.14kg 2.51lbs |
| Packaged Dimensions | 690 x 95 x 95 mm 27.17 x 3.74 x 3.74 inch |
| Master Box QTY | 24 |
| Master Box Weight | 29.04kg 64.02lbs |
| Master Box Dimensions | 810 x 600 x 400 mm 31.89 x 23.62 x 15.75 inch |
| Country of Origin | CN |
OMNI-292
Wide Band (690 – 2700 MHz) Omni-directional (8 dBi) Antenna, N-type connector.
This is one of the few omni-directional antennas in the world that offers consistent high gain over a very wide frequency band with excellent radiation pattern performance.
I want to order
More Info
The OMNI-292 is a high gain omni-directional antenna that covers all cellular frequencies bands needed for LTE(4G), but also covers the bands for HSDPA, 3G, EDGE, GPRS, voice and 2.4 GHz LTE and Wi-Fi bands. Its configuration makes it suitable for fixed installations of any cellular frequency band. This is one of the few omni-directional antennas in the world that offers consistent high gain over a very wide frequency band with excellent radiation pattern performance. This makes it a very popular choice with installers because of its base station agile. It is also ideal for machine to machine (M2M) applications that are communicating through GSM network (GPRS/ EDGE/ 3G/ HSPA/ LTE).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0292-V2 | N/A | N/A | Off White |
| SKU | A-OMNI-0292-V2 |
|---|---|
| EAN | 6009710923726 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.242kg 2.74lbs |
| Packaged Dimensions | 700 x 95 x 95 mm 27.56 x 3.74 x 3.74 inch |
| Master Box QTY | 24 |
| Master Box Weight | 29.8kg 65.7lbs |
| Master Box Dimensions | 810 x 600 x 400 mm 31.89 x 23.62 x 15.75 inch |
| Country of Origin | CN |
OMNI-121
Wide Band LTE Omnidirectional Antenna, 698 – 2700MHz, max. Gain: 6 dBi, with stainless steel pole mount bracket, IP65.
The antenna is a popular choice with installers because of its versatile base station capabilities. It is also ideal for machine to machine (M2M) applications that are communicating through GSM network (GPRS/ EDGE/ 3G/ HSPA/ LTE).
I want to order
More Info
This medium gain omni-directional antenna covers the GSM 900, GSM1800 / UMTS and LTE frequency bands. It is a light-weight antenna that is easy to install. This is a cost- effective omni-directional solution as it comes with a 5m cable. The antenna is a popular choice with installers because of its versatile base station capabilities. It is also ideal for machine to machine (M2M) applications that are communicating through GSM network (GPRS/ EDGE/ 3G/ HSPA/ LTE).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0121-V3 | HDF-195 | 8m | Off White | |
| A-OMNI-0121-01-V3 | HDF-195 | 5m | Off White | |
| A-OMNI-0121-03-V3 | HDF-195 | 5m | Off White |
| SKU | A-OMNI-0121-V3 | A-OMNI-0121-01-V3 | A-OMNI-0121-03-V3 |
|---|---|---|---|
| EAN | 6009710923887 | 6009710923900 | 6009710922507 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.72kg 1.59lbs |
0.6kg 1.32lbs |
0.63kg 1.39lbs |
| Packaged Dimensions | 595 x 130 x 65 mm 23.43 x 5.12 x 2.56 inch |
595 x 130 x 65 mm 23.43 x 5.12 x 2.56 inch |
595 x 130 x 65 mm 23.43 x 5.12 x 2.56 inch |
| Master Box QTY | 20 | 20 | 20 |
| Master Box Weight | 14.8kg 32.63lbs |
14.4kg 31.75lbs |
14.4kg 31.75lbs |
| Master Box Dimensions | 610 x 545 x 352 mm 24.02 x 21.46 x 13.86 inch |
610 x 545 x 352 mm 24.02 x 21.46 x 13.86 inch |
610 x 545 x 352 mm 24.02 x 21.46 x 13.86 inch |
| Country of Origin | CN | CN | CN |
XPOL-1-v2-41
A 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
OMNI-214
A 4×4 MIMO Ultra-Wide Band (617-3800 MHz) Omni-directional (3.5dBi) Antenna, w/ 2m twin HDF-195 cables, with SMA (m) connectors.
The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
I want to order
More Info
The OMNI-214 is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 3800 MHz. The antenna offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-214 a true omni-directional 4×4 MIMO antenna, suitable for urban or commercial applications. The OMNI-214 guarantees signal reception almost everywhere and is usable in all part of the world. The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0214-V1-01 | HDF-195 | 2m | White |
| SKU | A-OMNI-0214-V1-01 |
|---|---|
| EAN | 6009710923665 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.59kg 3.51lbs |
| Packaged Dimensions | 690 x 95 x 96 mm 27.17 x 3.74 x 3.78 inch |
| Master Box QTY | 24 |
| Master Box Weight | 39.47kg 87.02lbs |
| Master Box Dimensions | 400 x 600 x 810 mm 15.75 x 23.62 x 31.89 inch |
| Country of Origin | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G. High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger).
The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
OMNI-293
Ultra-Wide Band (617 – 3800 MHz), Omni-Directional (9dBi) Antenna, N-Type connector.
The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
I want to order
More Info
The OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0293-V1-01 | N/A | N/A | Off White |
| SKU | A-OMNI-0293-V1-01 |
|---|---|
| EAN | 6009710922347 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.14kg 2.51lbs |
| Packaged Dimensions | 690 x 95 x 95 mm 27.17 x 3.74 x 3.74 inch |
| Master Box QTY | 24 |
| Master Box Weight | 29.04kg 64.02lbs |
| Master Box Dimensions | 810 x 600 x 400 mm 31.89 x 23.62 x 15.75 inch |
| Country of Origin | CN |
OMNI-600
A 2×2 MIMO Ultra-Wide Band (410-3800 MHz) Omni-directional (6.2dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors.
The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network.
I want to order
More Info
The OMNI-600 is a unique new design with improved 2×2 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range, making the OMNI-600 a true high performance omni-directional antenna. The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries.
- 2X2 MIMO high performance omni-directional antenna
- Consistent gain over a wide frequency band
- Increased connectivity stability
- Excellent broadband quality antenna
- Vandal and water-resistant enclosure
LPDA-92
Ultra-Wide Band (690 – 3800 MHz), Directional High Gain (12dBi) Antenna, 7m HDF-195 cable, w/ SMA (m) connector.
This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures.
I want to order
More Info
This high-gain, wideband, directional antenna covers all international cellular, mobile and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-LPDA-0092 | HDF-195 | 7m | Silver | |
| A-LPDA-0092-04 | HDF-195 | 0.3m | Silver | |
| A-LPDA-0092-04-LTE | HDF-195 | 0.5m | Silver | |
| A-LPDA-0092 | HDF-195 | 0.3m | Silver | |
| A-LPDA-0092-30-LTE | HDF-195 | 7m | Silver |
| SKU | A-LPDA-0092 | A-LPDA-0092-04 |
|---|---|---|
| EAN | 6009710921166 | 6009710921722 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.02kg 4.45lbs |
1.93kg 4.25lbs |
| Packaged Dimensions | 1120 x 210 x 60 mm 44.09 x 8.27 x 2.36. inch |
1120 x 210 x 60 mm 44.09 x 8.27. x 2.36.inch |
| Master Box QTY | 10 | 10 |
| Master Box Weight | 20.02kg 44.14lbs |
19.37kg 42.7lbs |
| Master Box Dimensions | 1140 x 435 x 330 mm 44.88 x 17.13 x 13 inch |
1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | RSA | CN |
XPOL-1-v2-41
A 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
OMNI-214
A 4×4 MIMO Ultra-Wide Band (617-3800 MHz) Omni-directional (3.5dBi) Antenna, w/ 2m twin HDF-195 cables, with SMA (m) connectors.
The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
I want to order
More Info
The OMNI-214 is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 3800 MHz. The antenna offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-214 a true omni-directional 4×4 MIMO antenna, suitable for urban or commercial applications. The OMNI-214 guarantees signal reception almost everywhere and is usable in all part of the world. The ultra-wideband performance makes the antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0214-V1-01 | HDF-195 | 2m | White |
| SKU | A-OMNI-0214-V1-01 |
|---|---|
| EAN | 6009710923665 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.59kg 3.51lbs |
| Packaged Dimensions | 690 x 95 x 96 mm 27.17 x 3.74 x 3.78 inch |
| Master Box QTY | 24 |
| Master Box Weight | 39.47kg 87.02lbs |
| Master Box Dimensions | 400 x 600 x 810 mm 15.75 x 23.62 x 31.89 inch |
| Country of Origin | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G. High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger).
The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
OMNI-293
Ultra-Wide Band (617 – 3800 MHz), Omni-Directional (9dBi) Antenna, N-Type connector.
The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
I want to order
More Info
The OMNI-293 is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-293 a true high performance omni-directional antenna, suitable for urban and rural applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications. The antenna comes with an N-Type female connector at its base, which can be connected to a cable of the desired type and length.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0293-V1-01 | N/A | N/A | Off White |
| SKU | A-OMNI-0293-V1-01 |
|---|---|
| EAN | 6009710922347 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.14kg 2.51lbs |
| Packaged Dimensions | 690 x 95 x 95 mm 27.17 x 3.74 x 3.74 inch |
| Master Box QTY | 24 |
| Master Box Weight | 29.04kg 64.02lbs |
| Master Box Dimensions | 810 x 600 x 400 mm 31.89 x 23.62 x 15.75 inch |
| Country of Origin | CN |
OMNI-600
A 2×2 MIMO Ultra-Wide Band (410-3800 MHz) Omni-directional (6.2dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors.
The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network.
I want to order
More Info
The OMNI-600 is a unique new design with improved 2×2 MIMO electrical performance. The ultra-wide band covers all contemporary operating frequencies with excellent balanced gain across all frequencies. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range, making the OMNI-600 a true high performance omni-directional antenna. The OMNI-600 guarantees signal reception almost everywhere, making it usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz frequency and 3.5 GHz CBRS band which is gaining popularity in various regions and countries.
- 2X2 MIMO high performance omni-directional antenna
- Consistent gain over a wide frequency band
- Increased connectivity stability
- Excellent broadband quality antenna
- Vandal and water-resistant enclosure
LPDA-92
Ultra-Wide Band (690 – 3800 MHz), Directional High Gain (12dBi) Antenna, 7m HDF-195 cable, w/ SMA (m) connector.
This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures.
I want to order
More Info
This high-gain, wideband, directional antenna covers all international cellular, mobile and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-LPDA-0092 | HDF-195 | 7m | Silver | |
| A-LPDA-0092-04 | HDF-195 | 0.3m | Silver | |
| A-LPDA-0092-04-LTE | HDF-195 | 0.5m | Silver | |
| A-LPDA-0092 | HDF-195 | 0.3m | Silver | |
| A-LPDA-0092-30-LTE | HDF-195 | 7m | Silver |
| SKU | A-LPDA-0092 | A-LPDA-0092-04 |
|---|---|---|
| EAN | 6009710921166 | 6009710921722 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 2.02kg 4.45lbs |
1.93kg 4.25lbs |
| Packaged Dimensions | 1120 x 210 x 60 mm 44.09 x 8.27 x 2.36. inch |
1120 x 210 x 60 mm 44.09 x 8.27. x 2.36.inch |
| Master Box QTY | 10 | 10 |
| Master Box Weight | 20.02kg 44.14lbs |
19.37kg 42.7lbs |
| Master Box Dimensions | 1140 x 435 x 330 mm 44.88 x 17.13 x 13 inch |
1125 x 430 x 330 mm 44.29 x 16.93 x 13 inch |
| Country of Origin | RSA | CN |
XPOL-1-5G
A 2×2 / 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G. High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger).
The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
XPOL-1-5G
A 2×2 / 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
PUCK-2
Ultra-Wide Band (617 – 4200MHz), 2X2 MIMO LTE/5G, Smaller Aesthetic impact. With its small Aesthetic impact, the PUCK is has the smallest antenna elements, which will have an impact in reach. However, it still beats same sized competitors.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE/5G antennas (for 2G/3G/4G) that cover the 617 to 4200 MHz band which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-PUCK-0002-V1-01 | RTK-031 | 2m | Black |
| A-PUCK-0002-V1-01-W | RTK-031 | 2m | White |
| SKU | A-PUCK-0002-V1-01 | A-PUCK-0002-V1-01-W |
|---|---|---|
| EAN | 6009880915200 | 6009710920572 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.507kg 1.12lbs |
0.507kg 1.12lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 | 27 |
| Master Box Weight | 16.7kg 36.82lbs |
16.7kg 36.82lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN | CN |
OMNI-280
Wide Band (617-3800MHz), SISO LTE/5G Antenna, 1m RG-58 – SMA (m) – Mounting.
The OMNI-280 is a small stick-shaped antenna, which packs a great performance in a small form factor. Give its design, it ensures top-performance regardless of the surface where it is installed.
I want to order
More Info
The OMNI-280 antenna provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic, wall- or pole-mountable, single polarised, full LTE band antenna that incorporates an ultra-wideband element in a single housing. This antenna is a cost-effective solution for enhancing signal reception and throughput. The OMNI-280 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/ GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0280-01-V1 | RG-58 | 1m | Off White | |
| A-OMNI-0280-02-V1 | RG-58 | 2m | Off White | |
| A-OMNI-0280-08-V1 | RG-58 | 2m | Off White |
| SKU | A-OMNI-0280-01-V1 | A-OMNI-0280-02-V1 | A-OMNI-0280-08-V1 |
|---|---|---|---|
| EAN | 6009710923924 | 6009710923948 | 6009710923962 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.158kg 0.35lbs |
0.180kg 0.4lbs |
0.182kg 0.401lbs |
| Packaged Dimensions | 250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
| Master Box QTY | 50 | 50 | 50 |
| Master Box Weight | 7.93kg 17.48lbs |
9.36kg 20.64lbs |
9.410kg 20.75lbs |
| Master Box Dimensions | 500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
| Country of Origin | CN | CN | CN |
PUCK-1
Ultra-Wide Band (617 – 4200MHz), LTE/5G SISO Antenna, Smaller Aesthetic impact.
With its small Aesthetic impact, the PUCK is designed for closer-to-shore applications. Despite its size, it beats same sized competitors.
Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK-1 is a SISO antenna, covering the 617 to 4200 MHz band, which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE/5G throughput and connection stability.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-PUCK-0001-V1-01 | RTK-031 | 2m | Black |
| A-PUCK-0001-V1-01-W | RTK-031 | 2m | White |
| SKU | A-PUCK-0001-V1-01 | A-PUCK-0001-V1-01-W |
|---|---|---|
| EAN | 6009880915262 | 6009710920435 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.443kg 0.98lbs |
0.443kg 0.98lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 | 27 |
| Master Box Weight | 14.95kg 32.96lbs |
14.95kg 32.96lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN | CN |
OMNI-280
Wide Band (617-3800MHz), SISO LTE/5G Antenna, 1m RG-58 – SMA (m) – Mounting.
The OMNI-280 is a small stick-shaped antenna, which packs a great performance in a small form factor. Give its design, it ensures top-performance regardless of the surface where it is installed.
I want to order
More Info
The OMNI-280 antenna provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic, wall- or pole-mountable, single polarised, full LTE band antenna that incorporates an ultra-wideband element in a single housing. This antenna is a cost-effective solution for enhancing signal reception and throughput. The OMNI-280 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/ GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0280-01-V1 | RG-58 | 1m | Off White | |
| A-OMNI-0280-02-V1 | RG-58 | 2m | Off White | |
| A-OMNI-0280-08-V1 | RG-58 | 2m | Off White |
| SKU | A-OMNI-0280-01-V1 | A-OMNI-0280-02-V1 | A-OMNI-0280-08-V1 |
|---|---|---|---|
| EAN | 6009710923924 | 6009710923948 | 6009710923962 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.158kg 0.35lbs |
0.180kg 0.4lbs |
0.182kg 0.401lbs |
| Packaged Dimensions | 250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
| Master Box QTY | 50 | 50 | 50 |
| Master Box Weight | 7.93kg 17.48lbs |
9.36kg 20.64lbs |
9.410kg 20.75lbs |
| Master Box Dimensions | 500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
| Country of Origin | CN | CN | CN |
XPOL-1-5G
A 2×2 / 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G. High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger).
The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
XPOL-1-5G
A 2×2 / 4×4 MIMO, cross-polarized, Ultra-Wide Band (690 – 3800 MHz), Omni-directional (3dBi) Antenna, w/ 5m twin HDF-195 cables, with SMA (m) connectors options.
The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
I want to order
More Info
The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 690 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 690 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-XPOL-0001-V2-21 | HDF-195 | 5m | White | |
| A-XPOL-0001-V2-41 | HDF-195 | 5m | White |
| SKU | A-XPOL-0001-V2-21 | A-XPOL-0001-V2-41 |
|---|---|---|
| EAN | 6009710920763 | 6009710920886 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.05kg 2.31lbs |
1.34kg 2.95lbs |
| Packaged Dimensions | 270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
270 x 190 x 100 mm 10.63 x 7.48 x 3.94 inch |
| Master Box QTY | 20 | 20 |
| Master Box Weight | 19.5kg 43lbs |
27.62kg 60.89lbs |
| Master Box Dimensions | 550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
550 x 390 x 500mm 21.65 x 15.35 x 19.68 inch |
| Country of Origin | CN | CN |
PUCK-2
Ultra-Wide Band (617 – 4200MHz), 2X2 MIMO LTE/5G, Smaller Aesthetic impact. With its small Aesthetic impact, the PUCK is has the smallest antenna elements, which will have an impact in reach. However, it still beats same sized competitors.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE/5G antennas (for 2G/3G/4G) that cover the 617 to 4200 MHz band which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-PUCK-0002-V1-01 | RTK-031 | 2m | Black |
| A-PUCK-0002-V1-01-W | RTK-031 | 2m | White |
| SKU | A-PUCK-0002-V1-01 | A-PUCK-0002-V1-01-W |
|---|---|---|
| EAN | 6009880915200 | 6009710920572 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.507kg 1.12lbs |
0.507kg 1.12lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 | 27 |
| Master Box Weight | 16.7kg 36.82lbs |
16.7kg 36.82lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN | CN |
OMNI-280
Wide Band (617-3800MHz), SISO LTE/5G Antenna, 1m RG-58 – SMA (m) – Mounting.
The OMNI-280 is a small stick-shaped antenna, which packs a great performance in a small form factor. Give its design, it ensures top-performance regardless of the surface where it is installed.
I want to order
More Info
The OMNI-280 antenna provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic, wall- or pole-mountable, single polarised, full LTE band antenna that incorporates an ultra-wideband element in a single housing. This antenna is a cost-effective solution for enhancing signal reception and throughput. The OMNI-280 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/ GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0280-01-V1 | RG-58 | 1m | Off White | |
| A-OMNI-0280-02-V1 | RG-58 | 2m | Off White | |
| A-OMNI-0280-08-V1 | RG-58 | 2m | Off White |
| SKU | A-OMNI-0280-01-V1 | A-OMNI-0280-02-V1 | A-OMNI-0280-08-V1 |
|---|---|---|---|
| EAN | 6009710923924 | 6009710923948 | 6009710923962 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.158kg 0.35lbs |
0.180kg 0.4lbs |
0.182kg 0.401lbs |
| Packaged Dimensions | 250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
| Master Box QTY | 50 | 50 | 50 |
| Master Box Weight | 7.93kg 17.48lbs |
9.36kg 20.64lbs |
9.410kg 20.75lbs |
| Master Box Dimensions | 500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
| Country of Origin | CN | CN | CN |
PUCK-1
Ultra-Wide Band (617 – 4200MHz), LTE/5G SISO Antenna, Smaller Aesthetic impact. With its small Aesthetic impact, the PUCK is designed for closer-to-shore applications. Despite its size, it beats same sized competitors.
Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK-1 is a SISO antenna, covering the 617 to 4200 MHz band, which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE/5G throughput and connection stability.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-PUCK-0001-V1-01 | RTK-031 | 2m | Black |
| A-PUCK-0001-V1-01-W | RTK-031 | 2m | White |
| SKU | A-PUCK-0001-V1-01 | A-PUCK-0001-V1-01-W |
|---|---|---|
| EAN | 6009880915262 | 6009710920435 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.443kg 0.98lbs |
0.443kg 0.98lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 | 27 |
| Master Box Weight | 14.95kg 32.96lbs |
14.95kg 32.96lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN | CN |
OMNI-280
Wide Band (617-3800MHz), SISO LTE/5G Antenna, 1m RG-58 – SMA (m) – Mounting.
The OMNI-280 is a small stick-shaped antenna, which packs a great performance in a small form factor. Give its design, it ensures top-performance regardless of the surface where it is installed.
I want to order
More Info
The OMNI-280 antenna provides an innovative solution for the signal enhancement of 4G/3G and 2G networks. It is a unique magnetic, wall- or pole-mountable, single polarised, full LTE band antenna that incorporates an ultra-wideband element in a single housing. This antenna is a cost-effective solution for enhancing signal reception and throughput. The OMNI-280 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/ GPRS).
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-OMNI-0280-01-V1 | RG-58 | 1m | Off White | |
| A-OMNI-0280-02-V1 | RG-58 | 2m | Off White | |
| A-OMNI-0280-08-V1 | RG-58 | 2m | Off White |
| SKU | A-OMNI-0280-01-V1 | A-OMNI-0280-02-V1 | A-OMNI-0280-08-V1 |
|---|---|---|---|
| EAN | 6009710923924 | 6009710923948 | 6009710923962 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.158kg 0.35lbs |
0.180kg 0.4lbs |
0.182kg 0.401lbs |
| Packaged Dimensions | 250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
250 x 150 x 50 mm 9.84 x 5.91 x 1.97 inch |
| Master Box QTY | 50 | 50 | 50 |
| Master Box Weight | 7.93kg 17.48lbs |
9.36kg 20.64lbs |
9.410kg 20.75lbs |
| Master Box Dimensions | 500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
500 x 330 x 320 mm 19.69 x 13 x 12.6 inch |
| Country of Origin | CN | CN | CN |
