You’re router may have multiple technologies, and you may wish to put all the antennas outside of your vehicle, or the cellular and GPS ones for example. If this is the case, choose “4G/5G | Wi-Fi | GPS”. If, on the contrary, you are only interested in placing the cellular (4G/5G) antennas outside, choose the other option.

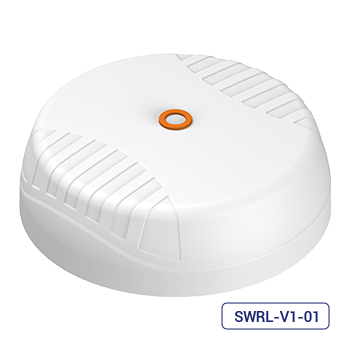

SWIRL-8
Wide Band (617-6000MHz), 8X8 MIMO LTE/5G, WI-FI & GPS / GLONASS.
High-performance, cross-polarized, omni-directional antenna. The SWIRL’s size and cross-polarized design provides improved signal reception and reliability in complex environments. Ideal for remote and areas of difficult access. Durable, weather-resistant, and available with multiple mounting options.
I want to order
More Info
The SWIRL-8-01 is the antenna-only version of the SWIRL that integrates: – Eight cross-polarized cellular antennas: covering a wide range of LTE and 5G frequency bands from 617 to 6000 MHz – Four dual-band Wi-Fi antennas: Supporting 2.4 GHz and 5 to 7.2 GHz bands for optimal wireless coverage – One dual-band GNSS antenna: Covering GPS L1 and L5 bands for fast and precise positioning.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-SWIRL-0008-V1-01 | RG-316 | 0.65m | White |
| SKU | |
|---|---|
| EAN | |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight |

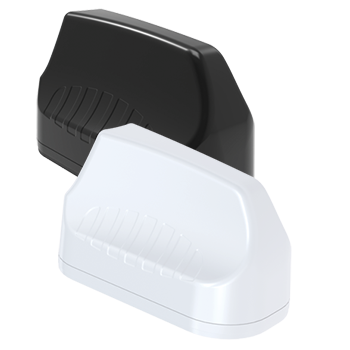

MIMO-3-14
Wide Band (450-3800MHz), 4X4 MIMO LTE/5G & GPS / GLONASS.
High Performance Omni-directional Antennas in a shark-fin, taller, design. Superior performance on lower bands (sub-1Ghz), meaning: superior reach & increased stability on harder to reach areas (remote/rural). Has a GPS included. Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
The MIMO-3-14 is a 5-in-1 high performance multi frequency antenna within a single housing, providing four cellular and a GPS/GLONASS antenna. The four cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-14 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0003-V2-14 | HDF-195 & RTK-031 | 2m | White |
| SKU | A-MIMO-0003-V2-14 |
|---|---|
| EAN | 6009710920596 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.33kg 2.93lbs |
| Packaged Dimensions | 265 x 211 x 204 mm 10.43 x 8.31 x 8.03 inch |
| Master Box QTY | 10 |
| Master Box Weight | 18.29kg 40.32lbs |
| Master Box Dimensions | 1125 x 430 x 330mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G.
High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger). The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
PANL-401
Ultra Wideband (410-6000MHz),4X4 MIMO LTE/5G & GPS / GLONASS.
State-of-the-art, high-performance, multi-functional Omni-directional panel antenna.
Delivers higher performance with a versatile, ultra-wideband design making it ideal for applications in diverse locations. Its compact form allows for easy window mounting with suction cups or adhesive, making it perfect for buses and other vehicles requiring reliable connectivity anywhere.
I want to order
More Info
The PANL-401 is a state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 5-in-1 solution, featuring 4 x Cellular antennas and 1 x dual-band active GNSS antenna, providing exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.
Ultra-Wideband Frequency Coverage: Supports frequencies from 410 to 6000 MHz, ensuring compatibility with multiple cellular operators and technologies.
Future-Ready 5G Support: Designed for seamless integration with upcoming 6 GHz 5G applications.
Reliable GNSS Performance: Includes a dual-band active GNSS antenna for accurate navigation and precise location tracking in challenging environments.
Optimized Radiation Pattern: Offers an ideal balance of omnidirectionality, pattern diversity, and elevation coverage, making it perfect for the transportation market.
Low-Profile and Compact Design: Blends seamlessly into vehicles or fixed installations, addressing both aesthetic and practical considerations.
Convenient Installation: Features an innovative window mount design, allowing for easy attachment using suction cups or adhesive mounts for both vehicles and buildings.
| SKU | Connector Type | COAX Cable Type / Length | Colour |
|---|---|---|---|
| A-PANL-0401-V1-01 | SMA (m) | RTK-031 / 2m | Black |
| SKU | A-PANL-0401-V1-01 |
|---|---|
| EAN | 6009710928837 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.40kg 3.09lbs |
| Packaged Dimensions | 380 x 280 x 70 mm 14.96 x 11.02 x 2.75 inch |
| Master Box QTY | |
| Master Box Weight | |
| Master Box Dimensions | |
| Country of Origin | CN |
MIMO-3-12/13
Wide Band (450-3800MHz), 2X2 MIMO LTE/5G (with or without GPS / GLONASS).
High Performance Omni-directional Antennas in a shark-fin, taller, design. Superior performance on lower bands (sub-1Ghz), meaning: superior reach & increased stability on harder to reach areas (remote/rural). Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
The MIMO-3-13 is a 3-in-1 high performance multi frequency antenna within a single housing, providing two cellular and a GPS/GLONASS antenna. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The third antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-13 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0003-V2-13 | HDF-195 & RTK-031 | 2m | White |
| SKU | A-MIMO-0003-V2-13 |
|---|---|
| EAN | 6009710923740 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.31kg 2.89lbs |
| Packaged Dimensions | 265 x 211 x 204 mm 10.43 x 8.31 x 8.03 inch |
| Master Box QTY | 10 |
| Master Box Weight | 16.6kg 36.6lbs |
| Master Box Dimensions | 1125 x 430 x 330mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN |
MIMO-4-4
Ultra Wideband (617-6000MHz), 4X4 MIMO LTE/5G.
High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger). The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors. Slightly inferior performance on very-hard to reach locations (remote/rural), compared to the MIMO-3 Series.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |

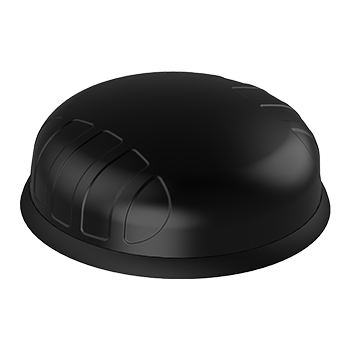

PUCK-2
Ultra-Wide Band (617 – 4200MHz), 2X2 MIMO LTE/5G. Smaller Aesthetic impact.
With its small Aesthetic impact, the PUCK is designed for suburban and urban applications. Despite its size, it beats same sized competitors. Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE/5G antennas (for 2G/3G/4G) that cover the 617 to 4200 MHz band which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-PUCK-0002-V1-01 | RTK-031 | 2m | Black |
| A-PUCK-0002-V1-01-W | RTK-031 | 2m | White |
| SKU | A-PUCK-0002-V1-01 | A-PUCK-0002-V1-01-W |
|---|---|---|
| EAN | 6009880915200 | 6009710920572 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.507kg 1.12lbs |
0.507kg 1.12lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 | 27 |
| Master Box Weight | 16.7kg 36.82lbs |
16.7kg 36.82lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN | CN |
PUCK-1
Ultra-Wide Band (617 – 4200MHz), LTE/5G SISO Antenna.
Smaller Aesthetic impact. With its small Aesthetic impact, the PUCK is designed for closer-to-shore applications. Despite its size, it beats same sized competitors. Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK-1 is a SISO antenna, covering the 617 to 4200 MHz band, which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE/5G throughput and connection stability.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-PUCK-0001-V1-01 | RTK-031 | 2m | Black |
| A-PUCK-0001-V1-01-W | RTK-031 | 2m | White |
| SKU | A-PUCK-0001-V1-01 | A-PUCK-0001-V1-01-W |
|---|---|---|
| EAN | 6009880915262 | 6009710920435 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.443kg 0.98lbs |
0.443kg 0.98lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 | 27 |
| Master Box Weight | 14.95kg 32.96lbs |
14.95kg 32.96lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN | CN |
SWIRL-8
Wide Band (617-6000MHz), 8X8 MIMO LTE/5G, WI-FI & GPS / GLONASS.
High-performance, cross-polarized, omni-directional antenna. The SWIRL’s size and cross-polarized design provides improved signal reception and reliability in complex environments. Ideal for remote and areas of difficult access. Durable, weather-resistant, and available with multiple mounting options.
I want to order
More Info
The SWIRL-8-01 is the antenna-only version of the SWIRL that integrates: – Eight cross-polarized cellular antennas: covering a wide range of LTE and 5G frequency bands from 617 to 6000 MHz – Four dual-band Wi-Fi antennas: Supporting 2.4 GHz and 5 to 7.2 GHz bands for optimal wireless coverage – One dual-band GNSS antenna: Covering GPS L1 and L5 bands for fast and precise positioning.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-SWIRL-0008-V1-01 | RG-316 | 0.65m | White |
| SKU | |
|---|---|
| EAN | |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight |
MIMO-3-17
Wide Band (450-3800MHz), 4x LTE/5G, 2xWi-Fi, 1xGPS.
High Performance Multifunctional Omni-directional in a shark-fin, taller, design. Superior performance on lower bands (sub-1Ghz), meaning: superior reach & increased stability on harder to reach areas (remote/rural). Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
The MIMO-3-17 is a 7-in-1 high performance multi frequency antenna within a single housing, providing four cellular, two Wi-Fi and a GPS/GLONASS antenna. The four cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna also provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The seventh antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-17 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-MIMO-0003-V2-17 | HDF-195 & RTK-031 | 2m | White | |
| A-MIMO-0003-V2-17-B | HDF-195 & RTK-031 | Black |
| SKU | A-MIMO-0003-V2-17 | A-MIMO-0003-V2-17-B |
|---|---|---|
| EAN | 6009710920848 | 6009710922125 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.61kg 3.55lbs |
1.61kg 3.55lbs |
| Packaged Dimensions | 265 x 211 x 204 mm 10.43 x 8.31 x 8.03 inch |
265 x 211 x 204 mm 10.43 x 8.31 x 8.03 inch |
| Master Box QTY | 10 | 10 |
| Master Box Weight | 18.95kg 41.78lbs |
18.95kg 41.78lbs |
| Master Box Dimensions | 1125 x 430 x 330mm 44.29 x 16.93 x 13 inch |
1125 x 430 x 330mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN | CN |
MIMO-4-4
Ultra-Wideband (617-6000MHz), High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger), 4x LTE/5G, 2x/x4 Wi-Fi, 1xGPS.
The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Beats same sized competitors.
I want to order
More Info
The MIMO-4-4 is a 4-in-1 high-performance, multi-frequency antenna with four cellular antennas within a single housing. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The MIMO-4-4 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. All radiating elements’ radiation patterns provide an excellent balance between omni-directionality, pattern diversity, and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M, and other IoT systems using a wide range of radio technologies while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-04-B | A-MIMO-0004-V1-04-W |
|---|---|---|
| EAN | 6009710927694 | 6009710927670 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.18kg 2.60lbs |
1.18kg 2.60lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 10.66kg 23.50lbs |
10.66kg 23.50lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
MIMO-3-15
Wide Band (450-3800MHz), High Performance Multifunctional Omni-directional in a shark-fin, taller, design. 2x LTE/5G, 2xWi-Fi, 1xGPS.
Superior performance on lower bands (sub-1Ghz), meaning: superior reach & increased stability on harder to reach areas (remote/rural). Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
The MIMO-3-15 is a 5-in-1 high performance multi frequency antenna within a single housing, providing two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas (for 2G/3G/4G) covers the contemporary 617 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE. The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The fifth antenna is a high-performance active GPS/GLONASS system operating down to -40°C. The MIMO-3-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-MIMO-0003-V2-15 | HDF-195 & RTK-031 | 2m | White | |
| A-MIMO-0003-V2-15-B | HDF-195 & RTK-031 | 2m | Black |
| SKU | A-MIMO-0003-V2-15 | A-MIMO-0003-V2-15-B |
|---|---|---|
| EAN | 6009710923764 | 6009710922101 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.36kg 3lbs |
1.36kg 3lbs |
| Packaged Dimensions | 265 x 211 x 204 mm 10.43 x 8.31 x 8.03 inch |
265 x 211 x 204 mm 10.43 x 8.31 x 8.03 inch |
| Master Box QTY | 10 | 10 |
| Master Box Weight | 18.32kg 40.39lbs |
18.32kg 40.39lbs |
| Master Box Dimensions | 1125 x 430 x 330mm 44.29 x 16.93 x 13 inch |
1125 x 430 x 330mm 44.29 x 16.93 x 13 inch |
| Country of Origin | CN | CN |
MIMO-4-15
Ultra-Wideband (617-6000MHz). High Performance Omni-directional Antennas in our traditional PUCK design (slightly bigger).
2x LTE/5G, 2xWi-Fi, 1xGPS. The natural upgrade from our well stablished PUCK antennas, now in a 4×4 LTE/5G configuration. Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
The MIMO-4-15 is a 5-in-1 high performance, multi frequency antenna within a single housing. The antenna provides two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz. The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2×2 MIMO capability. The MIMO-4-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.
| SKU | COAX Cable Type | COAX Cable Length | Colour |
|---|---|---|---|
| A-MIMO-0004-V1-04-B | RTK-031 | 2m | Black |
| A-MIMO-0004-V1-04-W | RTK-031 | 2m | White |
| SKU | A-MIMO-0004-V1-15-B | A-MIMO-0004-V1-15-W |
|---|---|---|
| EAN | 6009710925386 | 6009710926291 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 1.24kg 2.73lbs |
1.24kg 2.73lbs |
| Packaged Dimensions | 230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
230 x 220 x 150 mm 9.05 x 8.66 x 5.9 inch |
| Master Box QTY | 8 | 8 |
| Master Box Weight | 11.02kg 24.29lbs |
11.02kg 24.29lbs |
| Master Box Dimensions | 565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
565 x 465 x 315 mm 22.24 x 18.31 x 12.40 inch |
| Country of Origin | CN | CN |
PUCK Series
Wide Band (617 – 4200MHz), with a Smaller Aesthetic impact.
Multiple configurations around a 2xLTE/5G platform. With its small Aesthetic impact, the PUCK is designed for suburban and urban applications. Despite its size, it beats same sized competitors. Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK-1 is a SISO antenna, covering the 617 to 4200 MHz band, which includes the most popular international LTE/5G bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE/5G throughput and connection stability.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-PUCK-0001-V1-01 | RTK-031 | 2m | Black | |
| A-PUCK-0001-V1-01-W | RTK-031 | 2m | White |
PUCK-3
Ultra-Wide Band (617 – 4200MHz), Single LTE/5, Single Wi-Fi, Single GPS antenna elements.
Smaller Aesthetic impact. With its small Aesthetic impact, the PUCK is designed for closer-to-shore applications. Despite its size, it beats same sized competitors. Rugged, weather-proof and with Multiple Mounting Options.
I want to order
More Info
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine, and Agricultural/Farming markets. The PUCK-3 consists of a 3-in-1 antenna system within a single housing, featuring SISO 5G, SISO Wi-Fi, and GPS/GLONASS. The Cellular antenna (for 2G/3G/4G and 5G) offers wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future-proof implementation. The ultra-wideband performance of the cellular antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications. The antenna provides a dual-band Wi-Fi antenna offering concurrent 2.4GHz, 5GHz and 6GHz bands, capable of 802.11n and 802.11ac/ax/be. The third antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small-size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for 5G and LTE throughput and connection stability.
| SKU | COAX Cable Type | COAX Cable Length | Colour | Other |
|---|---|---|---|---|
| A-PUCK-0003-V2-01 | RTK-031 | 2m | Black |
| SKU | A-PUCK-0003-V2-01 |
|---|---|
| EAN | 6009710928271 |
| HS Code | 8529.10.69 (EU) 8517.71.0000 (USA) 8529.10.90 (SA & Global) |
| Packaged Weight | 0.65kg 1.43lbs |
| Packaged Dimensions | 150 x 150 x 120 mm 5.91 x 5.91 x 4.73 inch |
| Master Box QTY | 27 |
| Master Box Weight | 18.25kg 40.23lbs |
| Master Box Dimensions | 520 x 495 x 400 mm 20.47 x 19.49 x 15.75 inch |
| Country of Origin | CN |
